Z3X Easy Jtag Plus Full set

Z3X Easy-Jtag Plus is an innovative all in one service tool for phone and phone boot repair, data recovery, SPI memory programming and many other features. Supports eMMC, ISP, JTAG, SPI, NAND and much more protocols.

Z3X Easy-Jtag Plus - Outstanding features:

• One click device repair
• Boot repair
• Data recovery
• eMMC firmware repair
• Partition management
• eMMC service operations
• SPI memory programming

Z3X Easy-Jtag Plus - Hardware features:

• Updated Host MCU SAM3X8E (comparing to LPC1768 in old box)
• Updated high-speed FPGA SPARTAN6 (comparing to SPARTAN3 in old box)
• Updated power management subsystem – full digital PWM with ADC control
• Added Micro-USB connector (if additional power required)
• Added VCC and VCCQ switch with overcurrent protection
• Updated USB device interface: USB 2.0 480 Mbps (high speed)
• Integrated ISP engine: Z3X high power pro engine (4 MB/s)
• ISP support 1 and 4 bit* connection
• Added eMMC 8-bit high-speed interface up to 42 MHz
• Integrated NAND* engine: NFC with 4 KB RAM buffer and ECC
• Integrated M-PHY* interface
• Integrated SPI engine: up to 21 MHz clock for popular SPI memory flash IC
• Integrated self-test core that excludes 90% faults in production
• Integrated CCID card reader for Z3X Software Use

Z3X Easy-Jtag Plus - Hardware benefits:

• Box to Host PC speed increased up to 40 MB/sec
• JTAG Interface speed increased by 20%
• eMMC 1 Bit ISP Speed increased up to 4 MB/sec
• eMMC 4 Bit ISP Speed increased up to 12 MB/sec (eMMC 5.0+) **
• eMMC 4 Bit Speed up to 18 MB/sec
• eMMC 8 Bit Speed up to 28 MB/sec (eMMC 5.0+)
• Compatible with 99% host PC systems and OS
• Compatibility with old Easy JTAG 1st generation ISP adapters (1 bit)
• Compatibility with most of the popular eMMC sockets (with supplied adapters)
• Plug and Play for Windows OS 8/ 8.1/10
• Full support for Windows XP

eMMC Socket - Features:

• Made from high quality materials
• Over 10K cycles of lifetime performance
• Support for a wide range of eMMC ICs
• High-speed up to 40 MB/sec through 8-bit bus
• EMI resistant design, low noise components
• Integrated power logic (no need for additional power source)
• Surge protection - smart fuse driven (0.5A threshold)

Z3X Easy-Jtag Plus Full Set - Package Content:

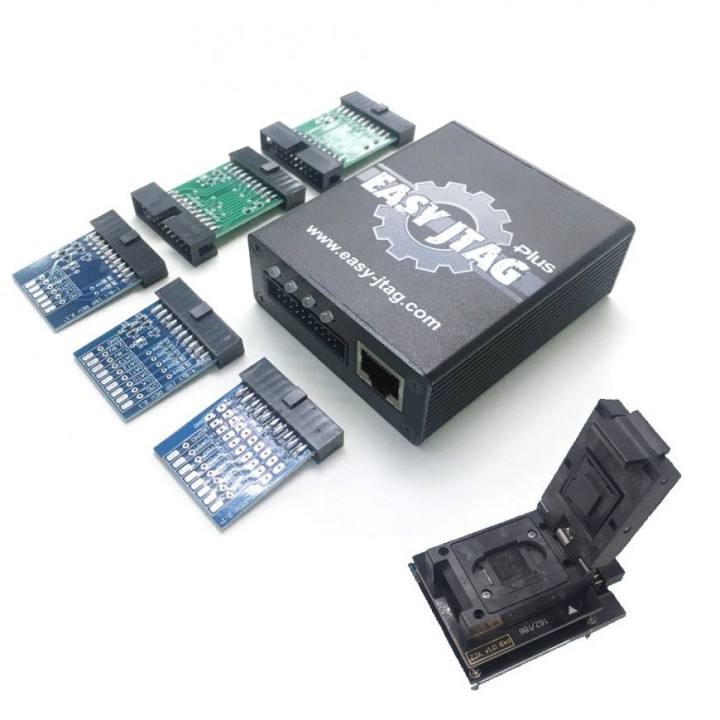

• Easy-JTAG Plus Box Hardware
• Z3X preactivated card with EasyJTAG PLUS Activation
• Z3X EMMC socket (BGA153/169, BGA162/186, BGA221, BGA529)
• USB A-B cable
• Adapter set - 5 pcs. (JTAG, ISP 1BIT, ISP 4BIT, U-SOCKET, E-SOCKET)
• 1 year guaranteed free support access

* Developer provides support only for those phones which are on the list of supported. Not all servicing features can be applied to some supported models, due to difference of hardware / software versions.
