HDBox Tool (Fully Activated)

Features

• Finds EFI password, and removes iCloud Lock for any mac,
• Recover usercode on IPhone / IPad,
• Kicks iphone / ipad out of “Iphone Disabled” ( IOS7.x only) ,
• Kicks iphone / ipad out of “Connect to itunes” (Recovery mode loop),
• Tip: if your phone shows on screen the red logo (DFU mode), simply connect to box and press and hold power & home button together for about 10 seconds, and your phone should reboot out of DFU mode(Phones firmware must be intact for this to work, or else it will boot back up in DFU mode),
• No time wasted with our AutoSave, your progress on current its saved auto-magically so that you wont waste your time,
• Worry free, Fully upgradable firmware, with shadow memory and caching, you can unplug it during update, nothing bad will ever happen,
• Comes standard with 1 full year free support and warranty,
• Easy To Use, Compact Size, Colorfull display for notifications, Instant feedbacks,
• Can even work without computer, internet, logs, just give it some power and it will work,
• Special attention and care paid to the power managment system, in order to minimize the power consumption and extend to the maximum functionality period what could be achieved from any power banks.

How to use

In order to use this tool to recover usercode fallow this simple steps:

1. Power up the box, using a computer, or an USB power bank,
2. Connect Sensor cable to RJ45, and the data cable to usb port,
3. Press confirm button and Ihone App 2.1 app should start if is selected as quick-run app,
4. Connect IPhone, and wait for Ready to run message, and if it is IOS8.0 or IOS8.1 connect power adaptor as well. This will prevent Iphone from entering Disabled mode,
5. Make sure that the sensor cable it is placed on the display of the iphone ( corners are better location, it will be unaffected by “Iphone is disabled” message which could trigger a false positive ),
6. If the iphone its first time connected to box, the counter will start from 0000. If you want to change it, simply press the joystick from the side, and will display >0< 000, and then use the joystick to selected desired number and press it to confirm the number. Do this for all 4 digits, and at the end it will display “+” or “-“, “+” its for ascending mode, 0000, 0001, 0002, 0003 and so on, and “-” its for descending mode 0000, 9999, 9998 an so on.
7. Now sit back and relax, when the code its found, you will receive a notice from the box. Tip: In case of false positives, simply press confirm button to continue the process.

Supported models by IOS version

# Full support: all operations are supported, and can even bring phone out of disable state.
! Full support + Adaptor required: all operations are supported, but for more than just 5 codes adaptor its required to prevent your device entering disabled mode.
x Partial support: means that the box can help you enter the code if your touch its broken and your phone does not register touches. You can use this feature to unlock and to make a back up before repairs, or, can try 5 codes until phone display “Iphone disabled” message.

Package contains

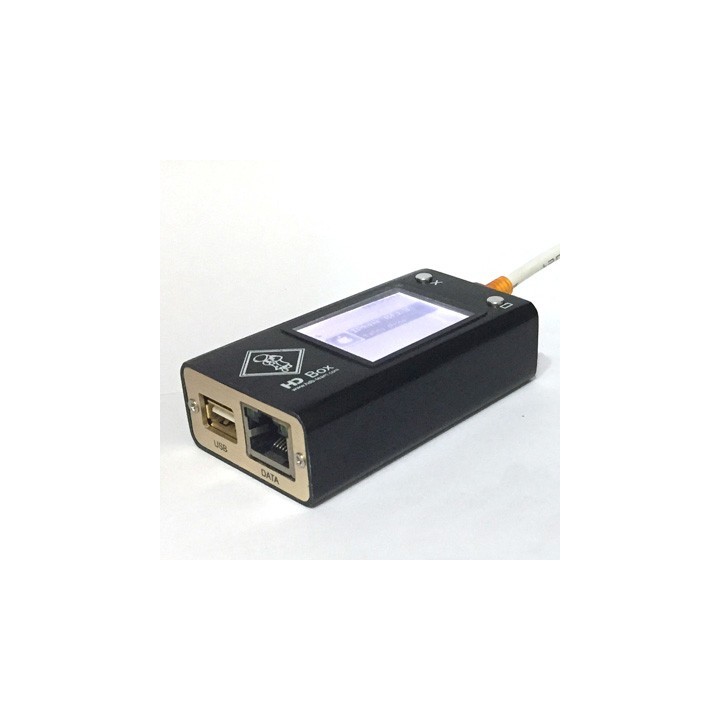

• 1 x HD Box,
• Software Activations:
  1. Universal Box Activation,
  2. Android Activation,
  3. Iphone Activation,
  4. EFI & Mac iCloud Activation,
• Cables/Adaptors:
  • 1 x Micro USB Cable,
  • 1 x OTG USB cable,
  • 1 x Sensor Cable,
  • 1 x IOS8.0 Power Adaptor,
  • 1 x IOS8.0 Power Adaptor – Extender Cable,
  • 1 x 30 Pin Cable for iPhone 3G/3Gs/4/4Gs, iPad 1/2/3, iPod nano 5th/6th generations and iPod Touch 3rd/4th generations,
  • 1 x 8 Pin Cable for iPhone 5/5C/5S, iPhone 6/6Plus/6S.

HDBOX – Forensic tool
Android APP

Android App(Work even with the phone with broken touch)

– Pin user lock
– Pattern user lock
– Backup pin lock
– Supports phones even without OTG
– Use computer to control phone
– Universal ADB
– Adb preauth
IOS App ( iPhone / iPad / iPod )

IOS App(iPhone/iPad/iPod)

– Pin user lock IOS7
– Pin user lock IOS8
(using adaptor)
– Easy Enter / Exit recovery mode
– Use computer to control phone
– Detect phone model, size, color, country
MAC OS / EFI

MAC OS/EFI

– firmware password for any mac / os
– iCloud lock for any mac / os
– fast iCloud (depends on mac models)
Universal Box: USB2UART

Universal Box:USB2UART

– Baud Rates:    300 to 4.500.000bps Baud Rates
– Data Bits:    5 / 6 / 7 / 8 Data Bits
– Parity:    None / Odd / Even / Mark / Space
– Stop Bits:    1 / 1.5 / 2 Stop Bits
– Standard CDC implementation:    YES
– Linux Support:    Standard CDC driver built-in
– Windows 10 Support:    Standard CDC driver built-in
UEFI *In Private testing*

UEFI *In Private testing*

– show password (2011 and early MACs)
– recover force firmware password
– removes firmware password
– fix intel management engine problems
TFlash *In Private testing*

TFlash * In Private testing*

– Card password ( Already implemented via: HDBox Menu > Settings > Reset Card Password )
– Card write protected
– Direct access to card registers

Check the below link for all Videos on Youtube.

Youtube Channel

October Special Update: Direct Control added to HDBox mangager. Using your computer’s keyboard and mouse you can type and touch the screen directly on your phone! Super useful for phones who have their touch screen broken, now you can do everything on them, even activate ADB or WIFI, extract contacts and media without waiting or needing to buy the spare parts for that phone. Also work directly from Android Tool on HdbBox, and this option is named “Free mode”.

Showcasing the direct control method from HDBox manager.

Android Support added to HDBox:
Remove pin lock, pattern lock, bypass google acount verification and more using our solution. This activation it is included in this package. All this options are implemented standalone, no need computer / internet / logs or anything else.
